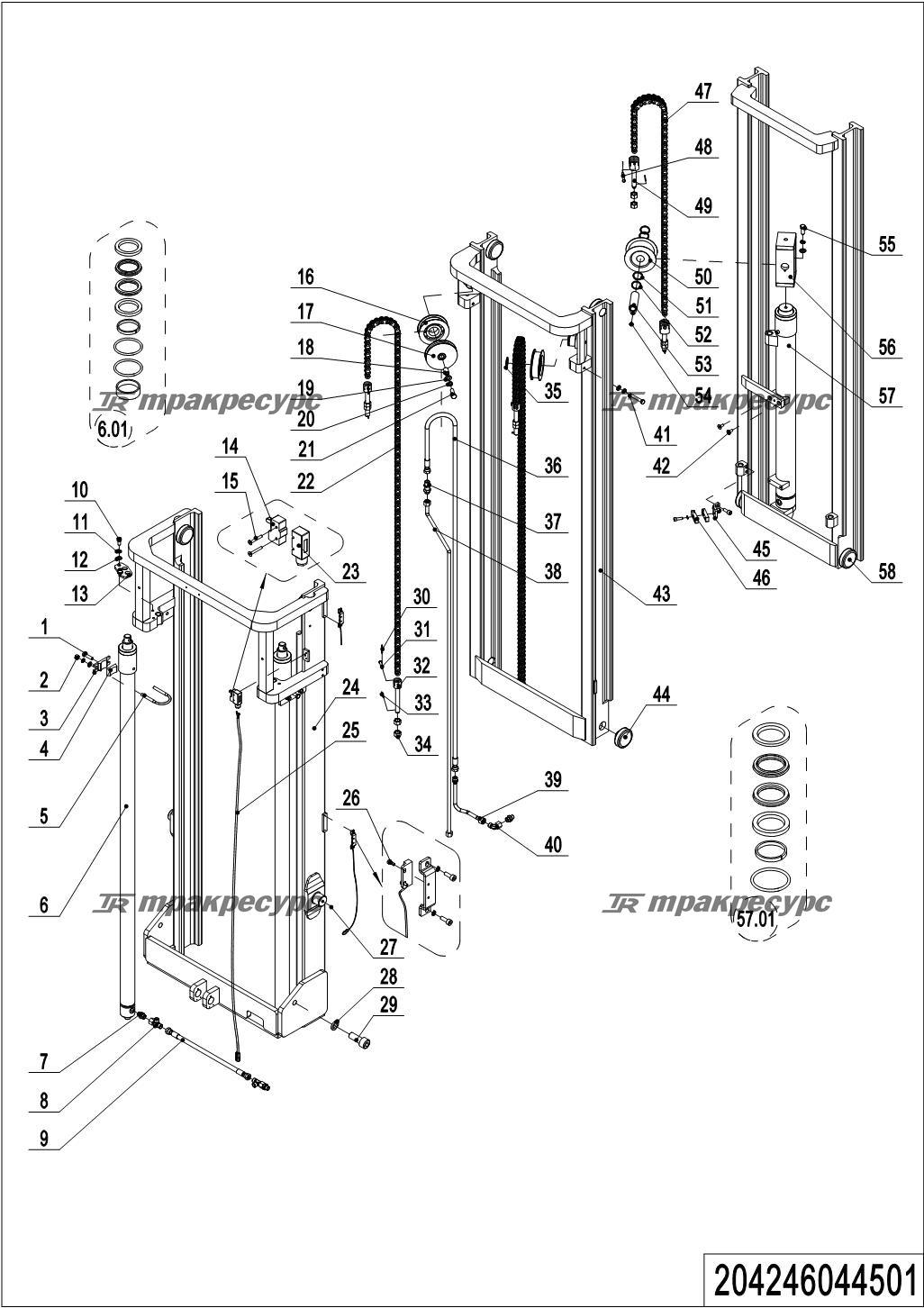

Noblelift PS12_15CB-C Тройная мачта с полной свободной высотой 204246044501
| № | Наименование | Артикул |
|---|---|---|
| 1 | Bolt | 910100300039 |
| 2 | Nut | 910300100007 |
| 3 | Fixing Base | 255044020130 |
| 4 | Protective Cover | 255044020129 |
| 5 | Bolt | 201044520017 |
| 6 | Cylinder | 201044510009 |
| 6 | Cylinder | 204444510013 |
| 6 | Cylinder | 204444510011 |
| 6 | Cylinder | 201044510008 |
| 6.01 | Seal Kit | 201098510005 |
| 7 | Joint | 950400400004 |
| 8 | Joint | 950401000001 |
| 9 | Hose | 201044520086 |
| 10 | Screw | 910200200075 |
| 11 | Spring Washer | 910400500007 |
| 12 | Flat Washer | 910400100007 |
| 13 | Mounting Plate | 201044520029 |
| 14 | Microswitch | 920200300001 |
| 15 | Screw | 910200500028 |
| 16 | Sprocket Bearing | 940200500001 |
| 17 | Pulley | 201044520040 |
| 18 | Sleeve | 201044520041 |
| 19 | Flat Washer | 910400100008 |
| 20 | Spring Washer | 910400500008 |
| 21 | Bolt | 910100300052 |
| 22 | Chain | 201044510019 |
| 22 | Chain | 204444510025 |
| 22 | Chain | 204444510019 |
| 22 | Chain | 201044510017 |
| 23 | Protective Cover | 920200300008 |
| 24 | Outer Mast(3600) | 204444510002 |
| 24 | Outer Mast(3600) | 204244510002 |
| 24 | Outer Mast(4000) | 204444510008 |
| 24 | Outer Mast(4000) | 204244510008 |
| 24 | Outer Mast(4300) | 204444510005 |
| 24 | Outer Mast(4300) | 204244510005 |
| 24 | Outer Mast(4500) | 204444510000 |
| 24 | Outer Mast(4500) | 204244510000 |
| 25 | Wire Harness | 204333010004 |
| 26 | Screw | 910200500010 |
| 27 | Oil Cup | 911200100001 |
| 28 | Spring Washer | 910400500012 |
| 29 | Screw | 910200200129 |
| 30 | Cotter Pin | 910600600006 |
| 31 | Pin | 941100800008 |
| 32 | Chain Anchor | 533243520008 |
| 32 | Chain Anchor | 252044020121 |
| 33 | Cotter Pin | 910600600023 |
| 34 | Nut | 910300200008 |
| 35 | Circlip | 910401300020 |
| 36 | Hose | 201044520083 |
| 36 | Hose | 204444510018 |
| 36 | Hose | 204444510016 |
| 36 | Hose | 201044520082 |
| 37 | Joint | 950400500002 |
| 38 | Steel Tube | 204444520029 |
| 38 | Steel Tube | 204444520028 |
| 38 | Steel Tube | 204444520027 |
| 38 | Steel Tube | 204444520026 |
| 39 | Steel Tube | 201044520077 |
| 40 | Joint | 950400200004 |
| 41 | Bolt | 910100100036 |
| 42 | Screw | 910200400025 |
| 43 | Middle Mast(3600) | 201044510005 |
| 43 | Middle Mast(4000) | 204444510009 |
| 43 | Middle Mast(4300) | 204444510006 |
| 43 | Middle Mast(4500) | 201044510004 |
| 44 | Compound Roller | 940200300007 |
| 45 | Mounting Plate | 201044520060 |
| 46 | Pipe Clip | 201044520023 |
| 47 | Chain | 204444510004 |
| 47 | Chain | 204444510021 |
| 47 | Chain | 535044510017 |
| 47 | Chain | 204444510024 |
| 48 | Pin | 941100800009 |
| 49 | Chain Anchor | 535045020024 |
| 50 | Sprocket Bearing | 940200500011 |
| 51 | Washer | 940600500009 |
| 52 | Washer | 940600500008 |
| 53 | Pin | 535045010008 |
| 54 | Screw | 910200400016 |
| 55 | Bolt | 910100300050 |
| 56 | Wheel Carrier | 204444510003 |
| 57 | Cylinder | 201044510011 |
| 57 | Cylinder | 204444510014 |
| 57 | Cylinder | 204444510012 |
| 57 | Cylinder | 201044510010 |
| 57.01 | Seal Kit | 201098510006 |
| 58 | Compound Roller | 940200300004 |
