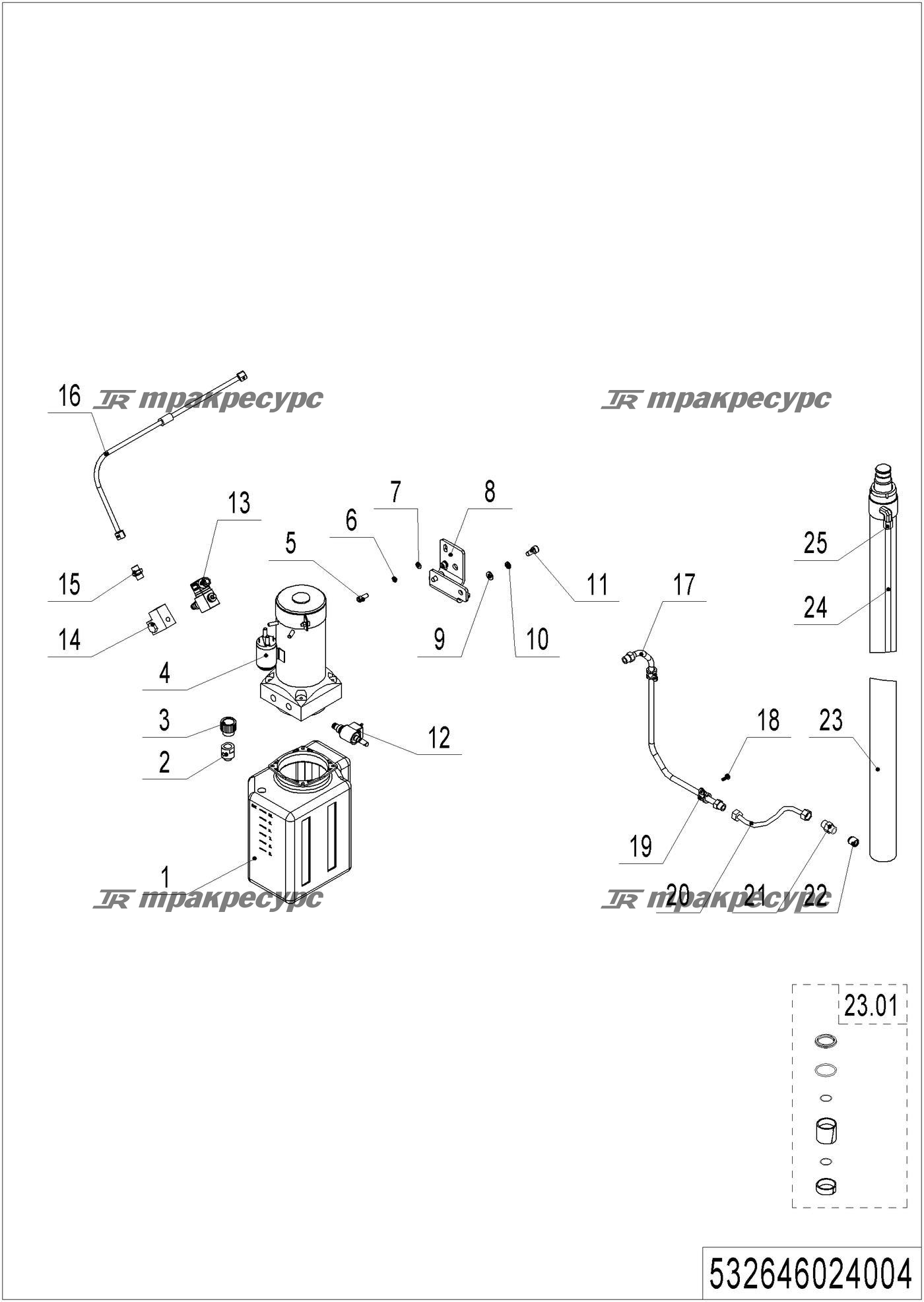

Noblelift PS15 Гидравлические компоненты (двухступенчатая мачта, пропорциональный подъем) 532646024004
| № | Наименование | Артикул |
|---|---|---|
| 1 | Tank | 532619020006 |
| 2 | Adapter | 533223520000 |
| 3 | Screw Plug | 951100200004 |
| 4 | Pump Unit | 950900100064 |
| 4 | Pump Unit | 950900100070 |
| 5 | Screw | 910200200057 |
| 6 | Spring Washer | 910400500006 |
| 7 | Flat Washer | 910400100006 |
| 8 | Mounting Plate | 532619020005 |
| 9 | Flat Washer | 910400100007 |
| 10 | Spring Washer | 910400500007 |
| 11 | Screw | 910200200075 |
| 12 | Proportional Valve | 950600200001 |
| 13 | Valve Element | 532698510028 |
| 14 | Valve Plate | 950600500001 |
| 15 | Joint | 950400300007 |
| 16 | Hose | 532624020014 |
| 17 | Steel Tube | 532624020009 |
| 18 | Screw | 910200200032 |
| 19 | Hose Clamp | 951000100003 |
| 20 | Hose | 532624020013 |
| 21 | Joint | 950400400003 |
| 22 | Safety Valve | 950600300001 |
| 23 | Cylinder | 532644010031 |
| 23 | Cylinder | 532644010037 |
| 23 | Cylinder | 532644010041 |
| 23 | Cylinder | 532644010045 |
| 23.01 | Seal Kit | 532698510001 |
| 24 | Pipe | 532644020080 |
| 24 | Pipe | 532644020102 |
| 24 | Pipe | 532644020108 |
| 24 | Pipe | 532644020114 |
| 25 | Joint | 950500100001 |
