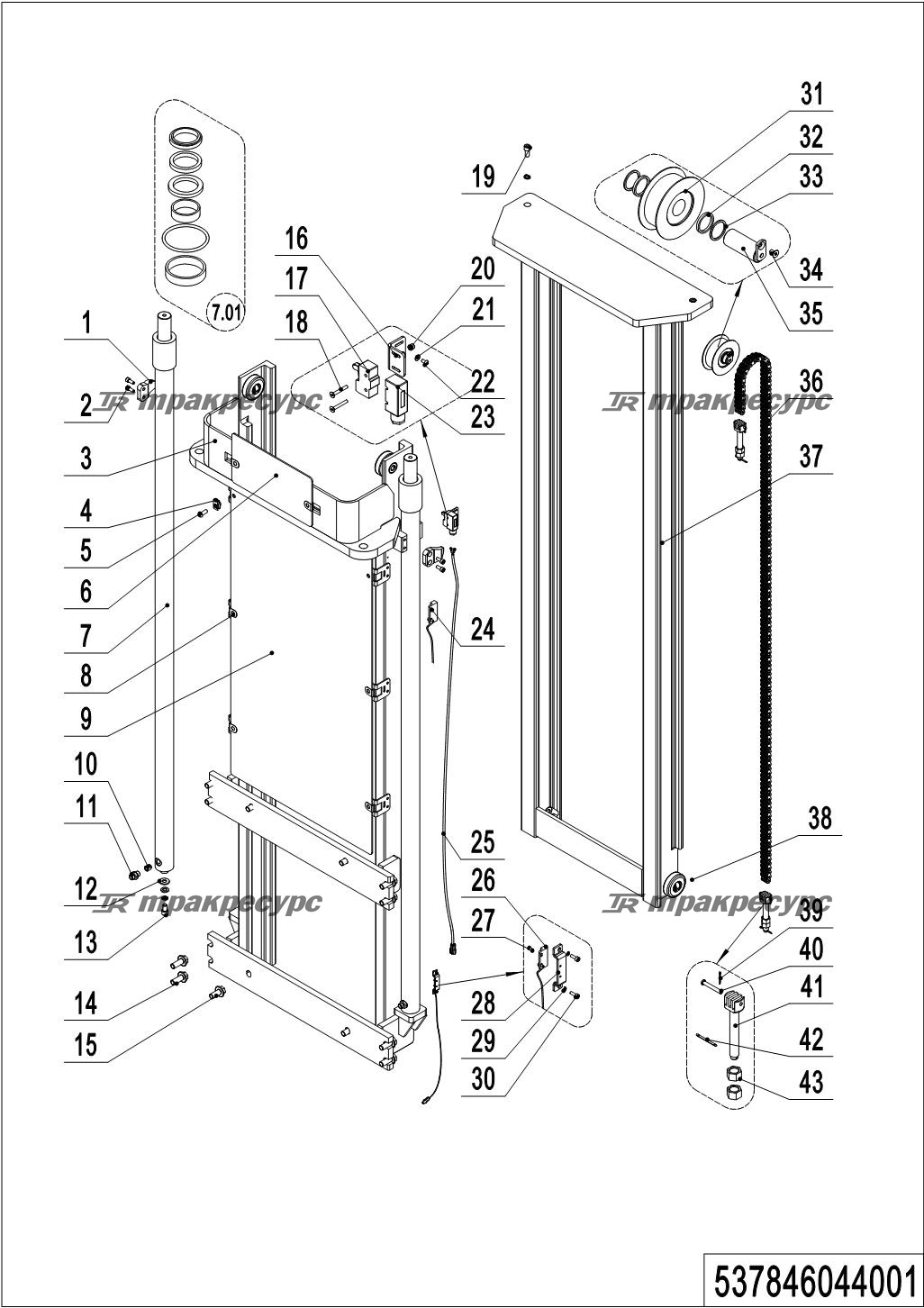

Noblelift PS16NW Двухступенчатая мачта (стандарт) 537846044001
| № | Наименование | Артикул |
|---|---|---|
| 1 | Fixing Plate | 275044020076 |
| 2 | Screw | 910200200057 |
| 3 | Outer Mast(2900) | 534744010013 |
| 3 | Outer Mast(3200) | 534744010012 |
| 3 | Outer Mast(3600) | 534744010011 |
| 4 | Cage Nut | 940400400003 |
| 5 | Screw | 941100100005 |
| 6 | Guard Plate | 534744520037 |
| 7 | Cylinder | 534744010008 |
| 7 | Cylinder | 534744010007 |
| 7 | Cylinder | 534744010006 |
| 7.01 | Seal Kit | 534798510005 |
| 8 | Spring Buckle | 940400300001 |
| 8 | Spring Buckle | 940400300001 |
| 9 | Guard Plate | 534744020011 |
| 9 | Guard Plate | 534744520038 |
| 9 | Guard Plate | 534744020006 |
| 10 | Safety Valve | 950600300001 |
| 11 | Joint | 950400400003 |
| 12 | Subplate | 534744520015 |
| 13 | Screw | 910200200096 |
| 14 | Bolt | 910100800006 |
| 15 | Bolt | 910100800005 |
| 16 | Fixing Plate | 534744520036 |
| 17 | Microswitch | 920200300001 |
| 18 | Screw | 910200400007 |
| 19 | Screw | 910200200097 |
| 20 | Nut | 910300500001 |
| 21 | Flat Washer | 910400100003 |
| 22 | Screw | 910200300005 |
| 23 | Protective Cover | 920200300008 |
| 24 | Switch | 537833010044 |
| 24 | Switch | 537833010043 |
| 24 | Switch | 537833010041 |
| 24 | Switch | 535933510021 |
| 25 | Wire Harness | 537833010053 |
| 25 | Wire Harness | 537833010052 |
| 25 | Wire Harness | 537833010050 |
| 25 | Wire Harness | 535933510025 |
| 26 | Switch | 537833010039 |
| 26 | Switch | 535933510020 |
| 27 | Screw | 910200500010 |
| 28 | Protective Cover | 534744520059 |
| 29 | Spring Washer | 910400500003 |
| 30 | Screw | 910200200014 |
| 31 | Sprocket Bearing | 940200500010 |
| 32 | Washer | 940600500009 |
| 33 | Washer | 940600500008 |
| 34 | Screw | 910200400016 |
| 35 | Pin | 533544510006 |
| 36 | Chain | 534744010010 |
| 36 | Chain | 532944010015 |
| 36 | Chain | 534744010009 |
| 37 | Inner Mast(2900) | 534744010016 |
| 37 | Inner Mast(3200) | 534744010015 |
| 37 | Inner Mast(3600) | 534744010014 |
| 38 | Compound Roller | 940200300004 |
| 39 | Cotter Pin | 910600600006 |
| 40 | Pin | 941100800012 |
| 41 | Chain Anchor | 532644520038 |
| 42 | Cotter Pin | 910600600023 |
| 43 | Nut | 910300200008 |
