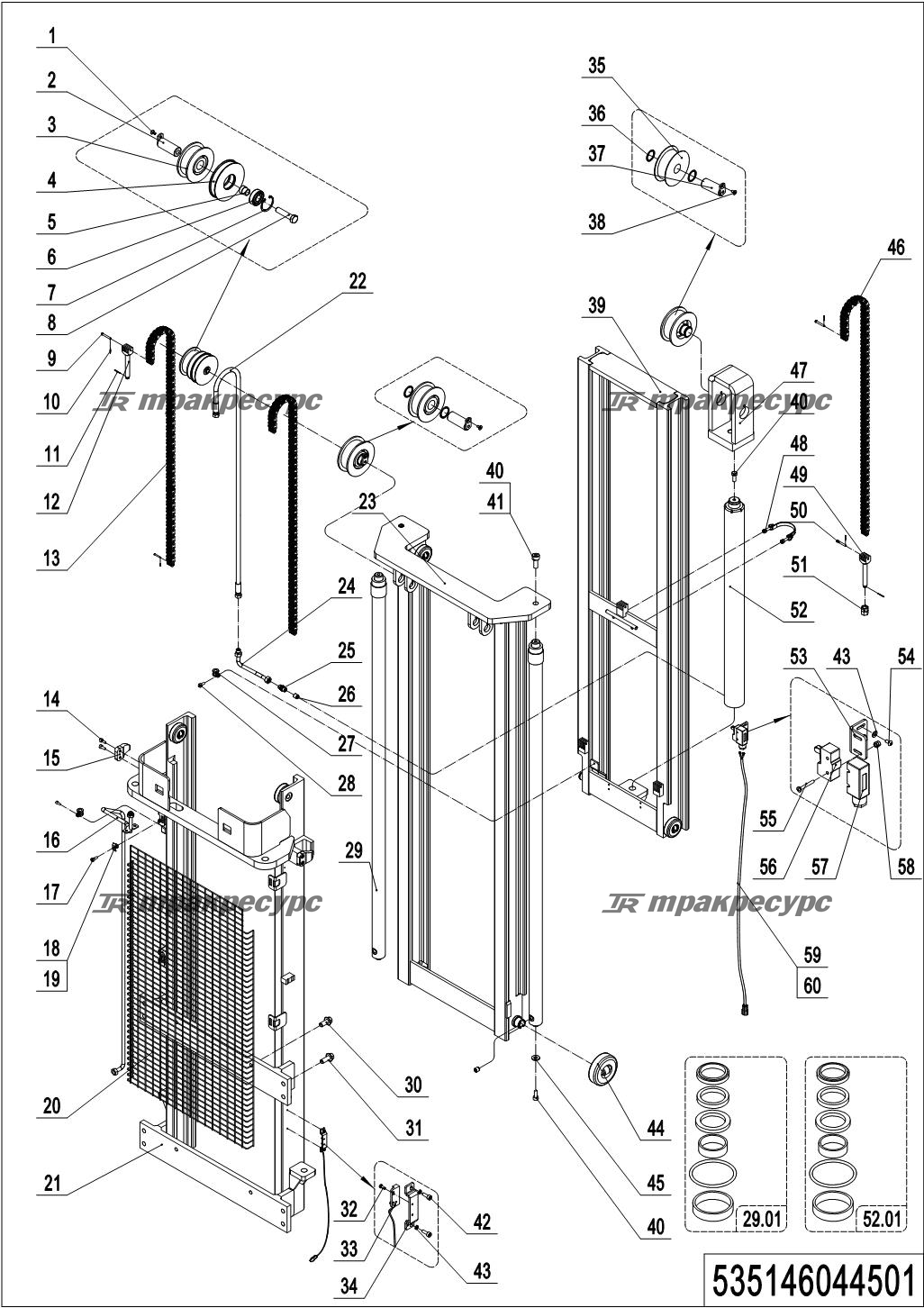

Noblelift PS18TSL-PS18TSL Тройная мачта с полной свободной высотой 535146044501
| № | Наименование | Артикул |
|---|---|---|
| 1 | Screw | 910200400016 |
| 2 | Pin | 533544510006 |
| 3 | Sprocket Bearing | 940200500010 |
| 4 | Pulley | 535944520000 |
| 5 | Sleeve | 534844520011 |
| 6 | Bearing | 910700200019 |
| 7 | Circlip | 910401400013 |
| 8 | Bolt | 910100100071 |
| 9 | Pin | 941100800006 |
| 10 | Cotter Pin | 910600600015 |
| 11 | Cotter Pin | 910600600032 |
| 12 | Chain Anchor | 532644520038 |
| 13 | Chain | 535044510020 |
| 13 | Chain | 534145010005 |
| 13 | Chain | 535044510016 |
| 14 | Screw | 910200200057 |
| 15 | Fixing Plate | 275044020076 |
| 16 | Steel Tube | 535144510019 |
| 16 | Steel Tube | 535144510013 |
| 16 | Steel Tube | 535144510002 |
| 17 | Screw | 910200200038 |
| 18 | Cage Nut | 940801500001 |
| 19 | Press Plate | 320443020321 |
| 20 | Protective Frame | 535044020025 |
| 20 | Protective Frame | 535044020022 |
| 20 | Protective Frame | 535044020021 |
| 21 | Outer Mast(4000) | 535144510017 |
| 21 | Outer Mast(4300) | 535144510010 |
| 21 | Outer Mast(4600) | 535144510000 |
| 22 | Hose | 535044510019 |
| 22 | Hose | 532644520143 |
| 22 | Hose | 532644520144 |
| 23 | Middle Mast(4000) | 535044510026 |
| 23 | Middle Mast(4300) | 535044510025 |
| 23 | Middle Mast(4600) | 535044510024 |
| 24 | Steel Tube | 535144510007 |
| 25 | Joint | 950400400003 |
| 26 | Safety Valve | 950600300001 |
| 27 | Hose Clamp | 951000100001 |
| 28 | Screw | 910200200035 |
| 29 | Cylinder | 535044510002 |
| 29 | Cylinder | 535044510001 |
| 29 | Cylinder | 535044510000 |
| 29.01 | Seal Kit | 534798510000 |
| 30 | Bolt | 910100800005 |
| 31 | Bolt | 910100800006 |
| 32 | Screw | 910200500010 |
| 33 | Switch | 534833510003 |
| 34 | Protective Cover | 534744520059 |
| 35 | Sprocket Bearing | 940200500011 |
| 36 | Washer | 940600500008 |
| 37 | Pin | 535045010008 |
| 38 | Screw | 910200400016 |
| 39 | Inner Mast(4000) | 535144510018 |
| 39 | Inner Mast(4300) | 535144510011 |
| 39 | Inner Mast(4600) | 535144510001 |
| 40 | Screw | 910200200097 |
| 41 | Spring Washer | 910400500008 |
| 42 | Screw | 910200200015 |
| 43 | Flat Washer | 910400100003 |
| 44 | Compound Roller | 940200300022 |
| 45 | Subplate | 534744520015 |
| 46 | Chain | 535044510018 |
| 46 | Chain | 535043510022 |
| 46 | Chain | 535044510017 |
| 47 | Yoke | 535043510034 |
| 48 | Hoop | 940800600002 |
| 49 | Chain Anchor | 535045020024 |
| 50 | Pin | 941100800009 |
| 51 | Nut | 910300200008 |
| 52 | Cylinder | 535043510012 |
| 52 | Cylinder | 534744510013 |
| 52 | Cylinder | 534744510012 |
| 52.01 | Seal Kit | 534798510001 |
| 53 | Fixing Plate | 534744520036 |
| 54 | Screw | 910200300005 |
| 55 | Screw | 910200500028 |
| 56 | Microswitch | 920200300001 |
| 57 | Protective Cover | 920200300008 |
| 58 | Nut | 910300500001 |
| 59 | Wire Harness | 534733010014 |
| 59 | Wire Harness | 534733010015 |
| 59 | Wire Harness | 535133510001 |
| 60 | Cable Tie | 921600400003 |
