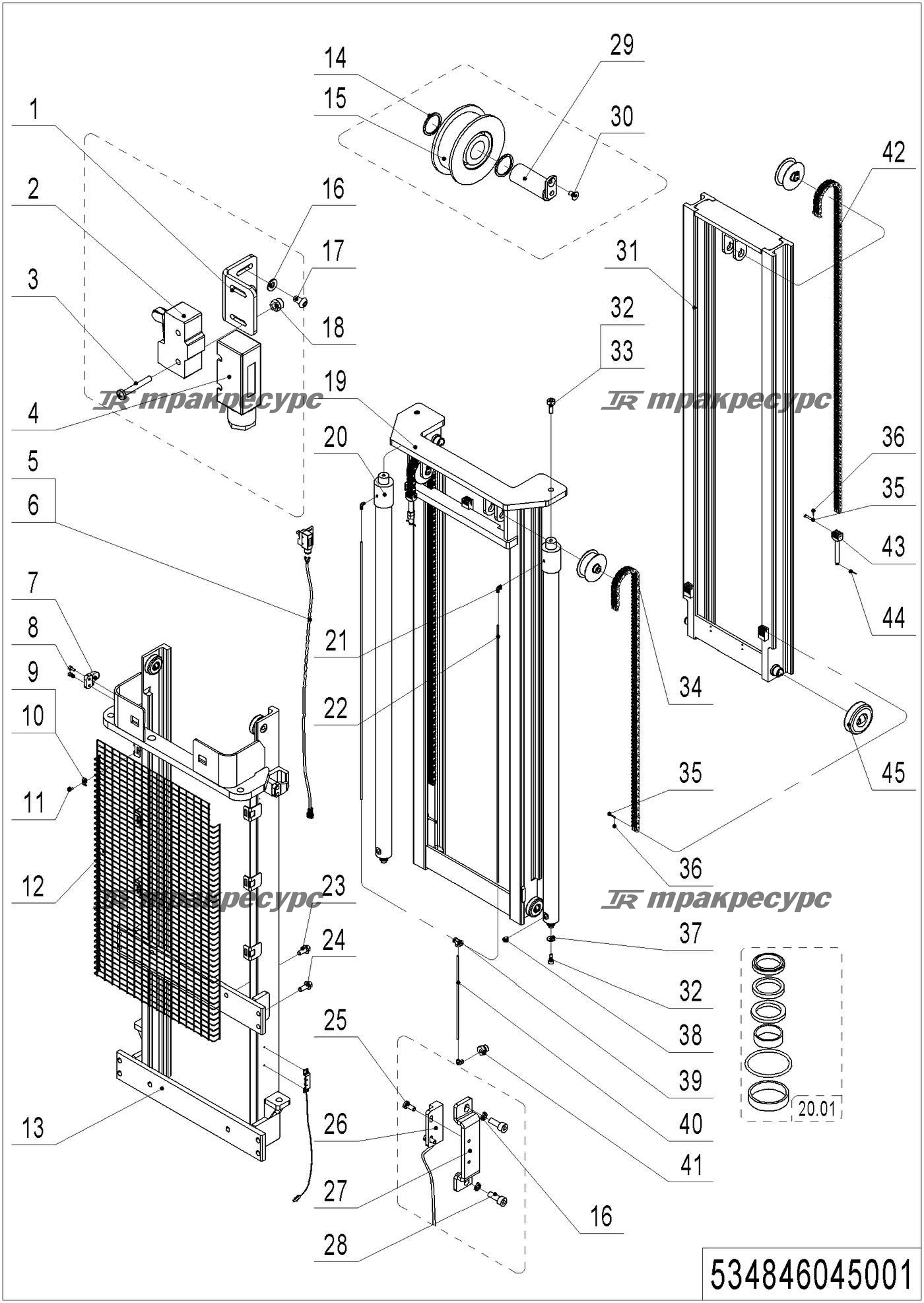

Noblelift PS18TSL-PS18TSL Тройная мачта стандартного подъема 535146045001
| № | Наименование | Артикул |
|---|---|---|
| 1 | Fixing Plate | 534744520036 |
| 2 | Microswitch | 920200300001 |
| 3 | Screw | 910200500028 |
| 4 | Protective Cover | 920200300008 |
| 5 | Wire Harness | 534733010015 |
| 5 | Wire Harness | 535133510001 |
| 6 | Cable Tie | 921600400003 |
| 7 | Fixing Plate | 275044020076 |
| 8 | Screw | 910200200057 |
| 9 | Cage Nut | 940801500001 |
| 10 | Press Plate | 320443020321 |
| 11 | Screw | 910200200038 |
| 12 | Protective Frame | 535044020022 |
| 12 | Protective Frame | 535044020021 |
| 13 | Outer Mast(4300) | 535145010001 |
| 13 | Outer Mast(4600) | 535145010000 |
| 14 | Washer | 940600500008 |
| 15 | Sprocket Bearing | 940200500011 |
| 16 | Flat Washer | 910400100003 |
| 17 | Screw | 910200300005 |
| 18 | Nut | 910300500001 |
| 19 | Middle Mast(4300) | 535045010016 |
| 19 | Middle Mast(4600) | 535045010015 |
| 20 | Cylinder | 535045010001 |
| 20 | Cylinder | 535045010000 |
| 20.01 | Seal Kit | 535098510001 |
| 21 | Joint | 950500100001 |
| 22 | Pipe | 534745020002 |
| 23 | Bolt | 910100800005 |
| 24 | Bolt | 910100800006 |
| 25 | Screw | 910200500010 |
| 26 | Switch | 534833510003 |
| 27 | Protective Cover | 534744520059 |
| 28 | Screw | 910200200015 |
| 29 | Pin | 535045010008 |
| 30 | Screw | 910200400016 |
| 31 | Inner Mast(4300) | 535045010018 |
| 31 | Inner Mast(4600) | 535045010017 |
| 32 | Screw | 910200200097 |
| 33 | Spring Washer | 910400500008 |
| 34 | Chain | 535044010010 |
| 34 | Chain | 535045010010 |
| 35 | Pin | 941100800009 |
| 36 | Cotter Pin | 910600600015 |
| 37 | Subplate | 534744520015 |
| 38 | Safety Valve | 950600300001 |
| 39 | Joint | 950500200001 |
| 40 | Pipe | 535024010003 |
| 41 | Adapter | 534824020003 |
| 42 | Chain | 535044010011 |
| 42 | Chain | 535044010010 |
| 43 | Chain Anchor | 535045020024 |
| 44 | Cotter Pin | 910600600032 |
| 45 | Compound Roller | 940200300022 |
