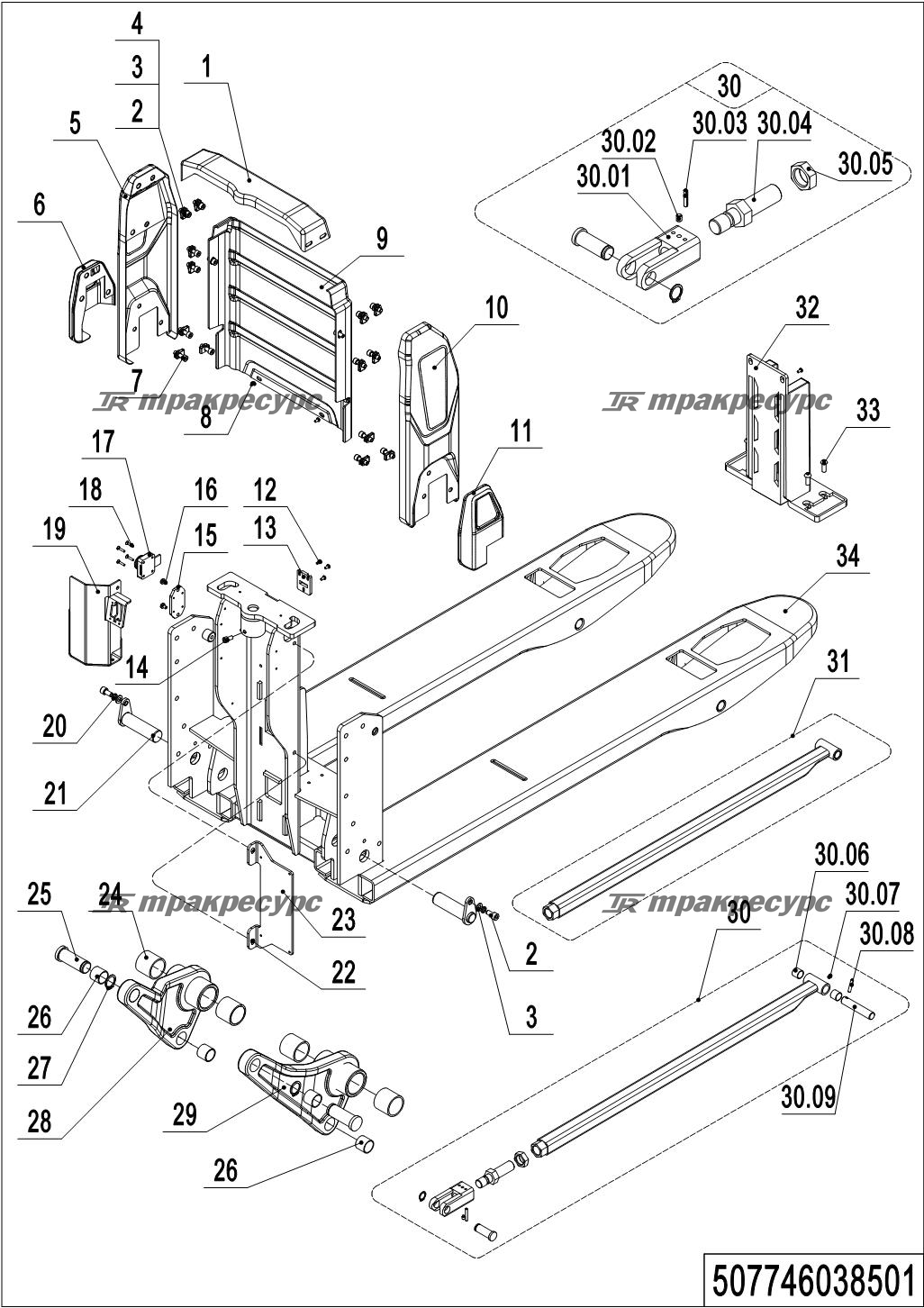

Noblelift PTE15N-ProPTE20N-Pro Конструкция (PTE15N Pro) 507746038501
| № | Наименование | Артикул |
|---|---|---|
| 1 | Cover | 507738520081 |
| 2 | Screw M8x16 | 910200200055 |
| 3 | Flat Washer | 910400100021 |
| 4 | Cage Nut | 940400400002 |
| 5 | Cover | 507738510094 |
| 5 | Cover | 507738510096 |
| 6 | Cover | 507738510090 |
| 7 | Screw M8x25 | 910200200157 |
| 8 | Screw M6x12 | 910200300017 |
| 9 | Front Panel | 507738520080 |
| 10 | Cover | 507738510095 |
| 10 | Cover | 507738510097 |
| 11 | Cover | 507738510091 |
| 12 | Screw M4x8 | 910200500034 |
| 13 | Lock Catch | 508038520109 |
| 14 | Screw M6x10 | 910200200171 |
| 15 | Mounting Plate | 507738520009 |
| 16 | Screw M6x10 | 910203100001 |
| 17 | Coded Lock | 507738510051 |
| 18 | Screw M4x20 | 910203000001 |
| 19 | Wire Box | 507738510054 |
| 20 | Spring Washer | 910400500006 |
| 21 | Pin | 507738510050 |
| 22 | Screw M4x10 | 910200200013 |
| 23 | Mounting Plate | 507738520017 |
| 24 | Bushing | 940500100097 |
| 25 | Pin | 508038520041 |
| 26 | Bushing | 940500100083 |
| 27 | Circlip | 910401300007 |
| 28 | Rise Arm | 510838510003 |
| 29 | Rise Arm | 510838510002 |
| 30 | Push Rod Kit(800) | 508098510038 |
| 30 | Push Rod Kit(915) | 508098510006 |
| 30 | Push Rod Kit(1000) | 508098510043 |
| 30 | Push Rod Kit(1070) | 508098510122 |
| 30 | Push Rod Kit(1150) | 507798510002 |
| 30 | Push Rod Kit(1220) | 508098510044 |
| 30.01 | Push Rod Fork | 508038520028 |
| 30.02 | Screw M6x8 | 910201000005 |
| 30.03 | Spring Pin 4x32 | 910600500001 |
| 30.04 | Adjusting Rod | 508038520029 |
| 30.05 | Nut | 910300400008 |
| 30.06 | Bushing | 940500100083 |
| 30.07 | Oil Cup | 911200100001 |
| 30.08 | Spring Pin 5x28 | 910600500002 |
| 30.09 | Push Rod Axle | 502338520030 |
| 31 | Push Rod (800) | 508038510016 |
| 31 | Push Rod (915) | 508038510014 |
| 31 | Push Rod (1000) | 508038510017 |
| 31 | Push Rod (1070) | 508038530018 |
| 31 | Push Rod (1150) | 508038510011 |
| 31 | Push Rod (1220) | 508038510024 |
| 32 | Guiding Column | 920600100436 |
| 33 | Screw M6x16 | 910200300018 |
| 34 | Chassis(540x800) | 507738510005 |
| 34 | Chassis(540x915) | 507738510007 |
| 34 | Chassis(540x1000) | 507738510009 |
| 34 | Chassis(540x1070) | 507738510011 |
| 34 | Chassis(540x1150) | 507738510001 |
| 34 | Chassis(540x1220) | 507738510003 |
| 34 | Chassis(75mm,540x800) | 507738510104 |
| 34 | Chassis(75mm,540x915) | 507738510106 |
| 34 | Chassis(75mm,540x1000) | 507738510108 |
| 34 | Chassis(75mm,540x1070) | 507738510110 |
| 34 | Chassis(75mm,540x1150) | 507738510100 |
| 34 | Chassis(75mm,540x1220) | 507738510102 |
