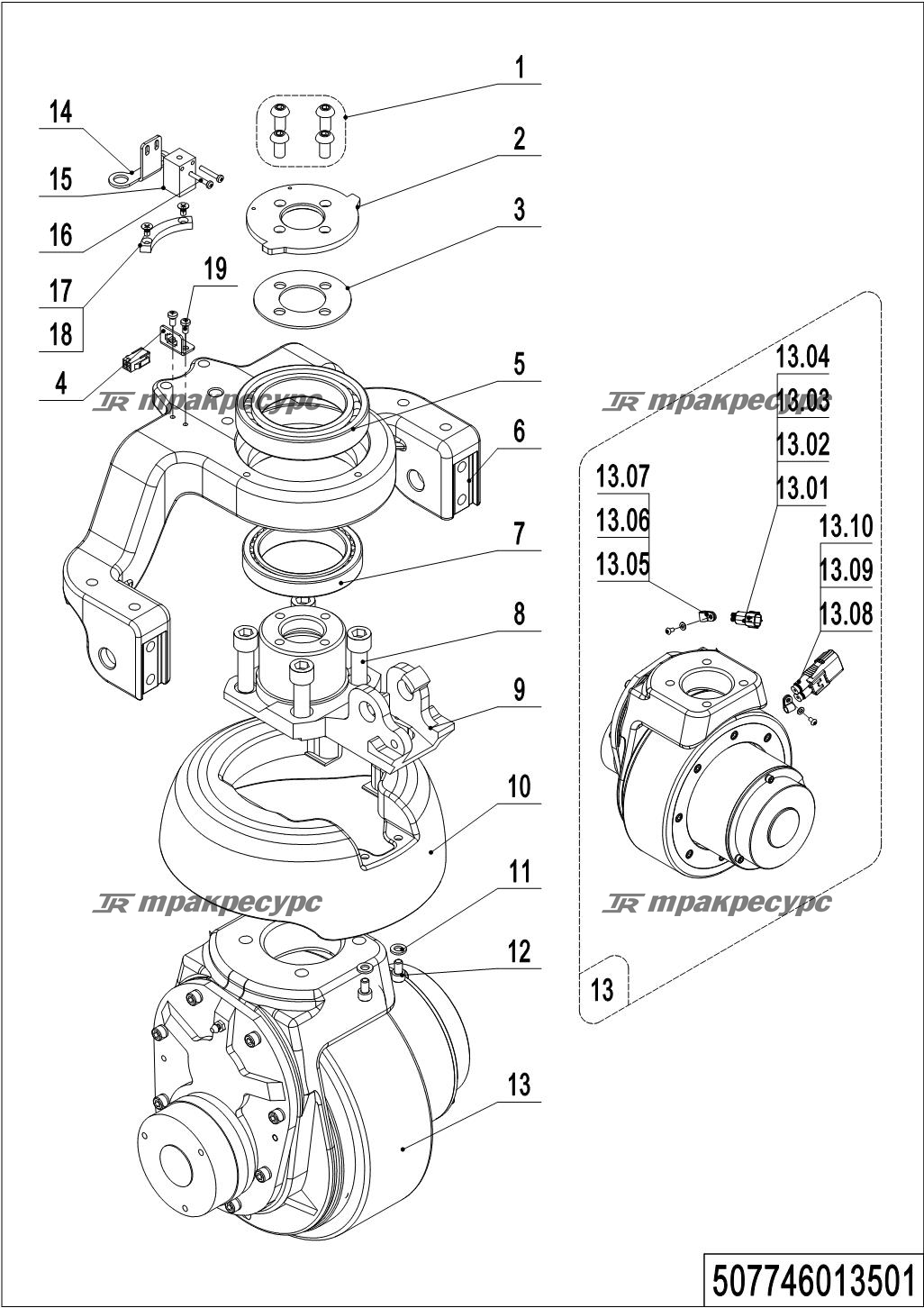

Noblelift PTE15N-ProPTE20N-Pro Приводный блок рулевого управления (PTE15N Pro) 507746013501
| № | Наименование | Артикул |
|---|---|---|
| 1 | Screw M8x16 | 910200300024 |
| 2 | Bearing Cap | 508013520003 |
| 3 | Subplate | 508013520004 |
| 4 | Mounting Plate | 507738520022 |
| 5 | Bearing | 910700200058 |
| 6 | Wheel Mount | 507913520000 |
| 7 | Bearing | 910700600044 |
| 8 | Screw M10x25 | 910200200076 |
| 9 | Flange | 508013520001 |
| 10 | Cover | 508013520101 |
| 11 | Flat Washer | 910400100005 |
| 12 | Screw M6x12 | 910200200033 |
| 13 | Drive Kit | 508013510002 |
| 13 | Drive Kit | 508013510005 |
| 13.01 | Connector | 920400200004 |
| 13.02 | Connector | 920400200003 |
| 13.03 | Connector | 920400200017 |
| 13.04 | Connector | 920400200018 |
| 13.05 | Screw M4x10 | 910200700001 |
| 13.06 | Flat Washer | 910400100003 |
| 13.07 | Cable Clamp | 921300200001 |
| 13.08 | Connector | 920400200169 |
| 13.09 | Connector | 920400200172 |
| 13.10 | Connector | 920400200171 |
| 14 | Bracket | 508033020003 |
| 15 | Proximity Switch | 920200400017 |
| 16 | Screw M3x20 | 910200500015 |
| 17 | Induction Block | 508033020002 |
| 18 | Screw M4x10 | 910200700001 |
| 19 | Screw M6x10 | 910200300016 |
