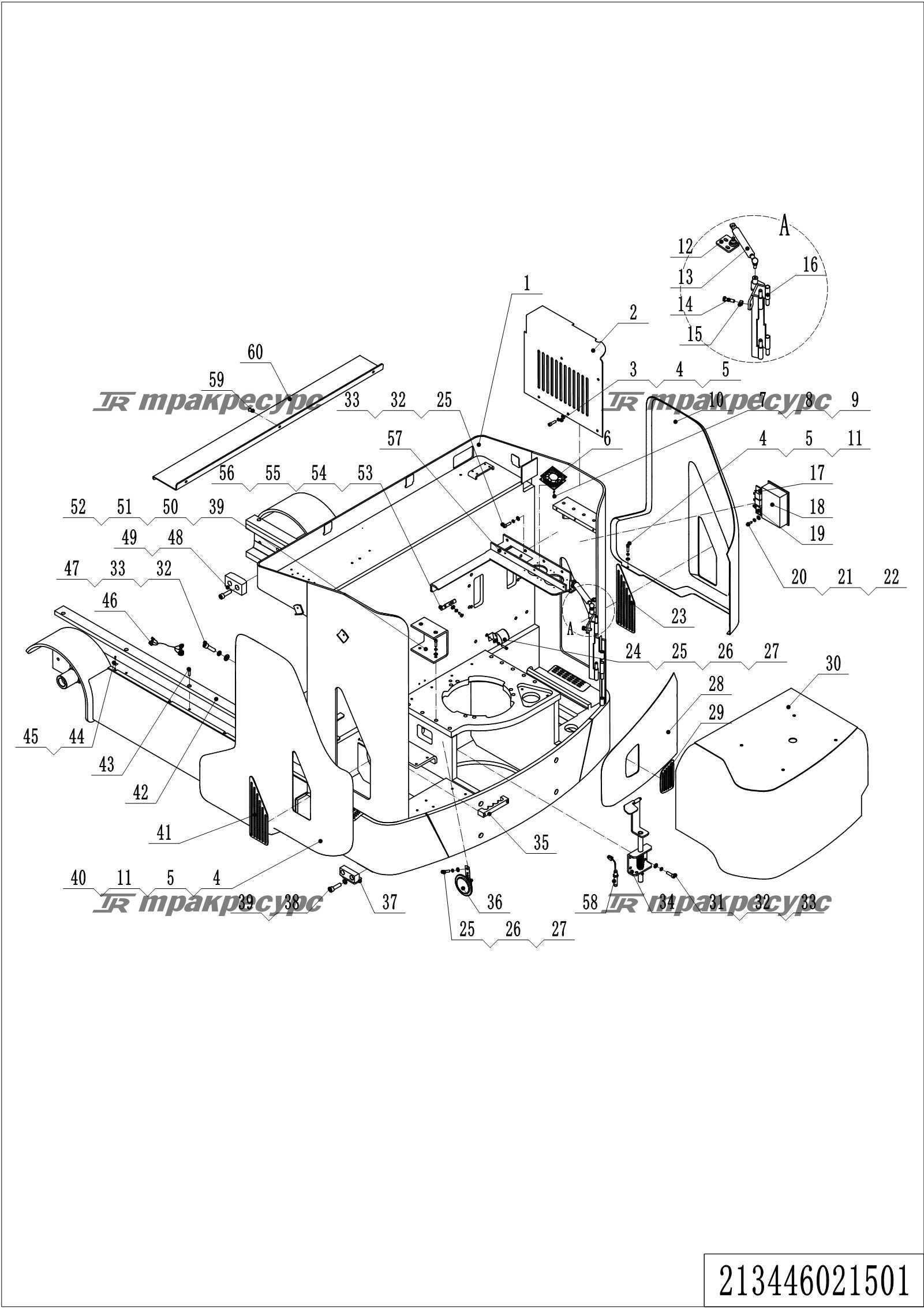

Noblelift RT20B Шасси 213446021501
| № | Наименование | Артикул |
|---|---|---|
| 1 | Chassis | 213121510000 |
| 2 | Cover | 212121510005 |
| 3 | Screw | 910200300017 |
| 4 | Spring Washer | 910400500005 |
| 5 | Flat Washer | 910400100005 |
| 6 | Fan | 212133510018 |
| 7 | Screw | 910200500028 |
| 8 | Spring Washer | 910400500003 |
| 9 | Flat Washer | 910400100003 |
| 10 | Side Plate(right) | 212121520092 |
| 11 | Screw | 910200200036 |
| 12 | Fixing Base | 212121510008 |
| 13 | Gas Spring | 212121520048 |
| 14 | Bolt | 910100300024 |
| 15 | Nut | 910300100006 |
| 16 | Hinge | 212121510002 |
| 17 | Relay | 920800100001 |
| 18 | Converter | 921900100014 |
| 19 | Lamp | 922000100005 |
| 20 | Screw | 910200500037 |
| 21 | Spring Washer | 910400500004 |
| 22 | Flat Washer | 910400100004 |
| 23 | Vent | 212121520101 |
| 24 | Horn | 920500100002 |
| 25 | Screw | 910200200055 |
| 26 | Spring Washer | 910400500006 |
| 27 | Flat Washer | 910400100006 |
| 28 | Cover | 212121520091 |
| 29 | Vent | 212121520102 |
| 30 | Cover | 212121510009 |
| 31 | Screw | 910200200060 |
| 32 | Spring Washer | 910400500006 |
| 33 | Flat Washer | 910400100006 |
| 34 | Handle Assembly | / |
| 35 | Fixing Plate | 212121520064 |
| 36 | Horn | 920500100001 |
| 37 | Support Leg | 212121520068 |
| 38 | Screw | 910200200099 |
| 39 | Spring Washer | 910400500008 |
| 40 | Side Plate(left) | 212121520093 |
| 41 | Vent | 212121520100 |
| 42 | Guide Rail | 213121520000 |
| 43 | Screw | 910200200058 |
| 44 | Press Plate | 212121520075 |
| 45 | Screw | 910200300011 |
| 46 | Wire Harness | 212333010001 |
| 46 | Wire Harness | 212333010011 |
| 47 | Screw | 910200200065 |
| 48 | Crash Pad | 216521520001 |
| 49 | Screw | 910200200098 |
| 50 | Fixing Plate | 212121520047 |
| 51 | Bolt | 910100300096 |
| 52 | Flat Washer | 910400100008 |
| 53 | Holder | 921300300005 |
| 54 | Screw | 910200500037 |
| 55 | Spring Washer | 910400500004 |
| 56 | Flat Washer | 910400100004 |
| 57 | Fixing Base | 212121510006 |
| 58 | Proximity Switch | 212133510007 |
| 58 | Proximity Switch | 212133510023 |
| 59 | Screw | 941100100001 |
| 60 | Guard Plate | 213121520011 |
