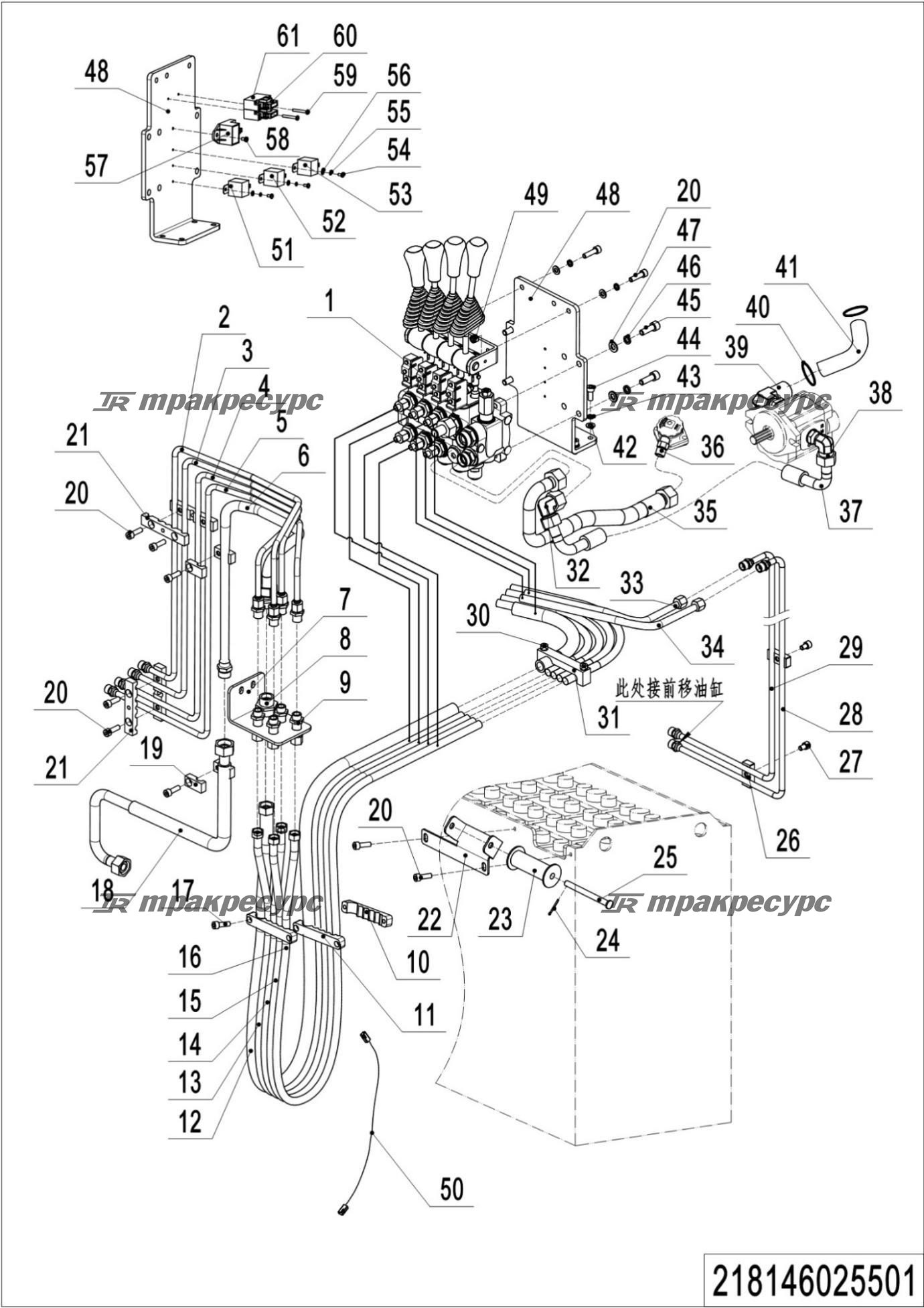

Noblelift RT25ST2 Четырехходовой гидравлический контур шасси 218146025501
| № | Наименование | Артикул |
|---|---|---|
| 1 | Multitandem Valve Kits | 216125501002 |
| 2 | Steel Tube | 216125520035 |
| 3 | Steel Tube | 216125520034 |
| 4 | Steel Tube | 216125520033 |
| 5 | Steel Tube | 216125520032 |
| 6 | Steel Tube | 216125520036 |
| 7 | Fixing Plate | 216125520038 |
| 8 | Adapter | 950400500005 |
| 9 | Joint | 950400500001 |
| 10 | Pipe Clip | 216125520044 |
| 11 | Pipe Clip | 216125520045 |
| 12 | Hose | 218125520000 |
| 13 | Hose | 218125520001 |
| 14 | Hose | 218125520002 |
| 15 | Hose | 218125520003 |
| 16 | Hose | 218125520004 |
| 17 | Screw | 910200200035 |
| 18 | Hose | 216125520005 |
| 19 | Pipe Clip | 213044520110 |
| 20 | Screw | 910200200058 |
| 21 | Pipe Clip | 201038020008 |
| 22 | Fixing Plate | 216125520041 |
| 23 | Slideway | 216125520040 |
| 24 | Cotter Pin | 910600600019 |
| 25 | Pin | 216125520042 |
| 26 | Pipe Clip | 201044520027 |
| 27 | Screw | 910200200055 |
| 28 | Hose | 216125520017 |
| 29 | Hose | 216125520016 |
| 30 | Screw | 910200200061 |
| 31 | Pipe Clip | 216125520039 |
| 32 | Joint | 950400200006 |
| 33 | Hose | 216125520030 |
| 34 | Hose | 216125520029 |
| 35 | Hose | 216125520019 |
| 36 | Joint | 950400300017 |
| 37 | Hose | 216125520018 |
| 38 | Joint | 950401100005 |
| 39 | Adapter | 216525020008 |
| 40 | Hose Clamp | 911000600006 |
| 41 | Oil Tube | 212125020001 |
| 42 | Flat Washer | 910400100006 |
| 43 | Spring Washer | 910400500006 |
| 44 | Screw | 910200200057 |
| 45 | Bolt | 910100200025 |
| 46 | Spring Washer | 910400500007 |
| 47 | Flat Washer | 910400100007 |
| 48 | Mounting Plate | 216125520001 |
| 49 | Nut | 910300100007 |
| 50 | Wiring Harness | 216133010014 |
| 51 | Relay | 920800100011 |
| 52 | Relay | 920800100011 |
| 53 | Relay | 920800100011 |
| 54 | Screw | 910200500034 |
| 55 | Spring Washer | 910400500003 |
| 56 | Flat Washer | 910400100003 |
| 57 | Lamp | 922000100005 |
| 58 | Screw | 910200500036 |
| 59 | Screw | 910200500028 |
| 60 | Fuse | 920100200002 |
| 61 | Fuse Holder | 920100400005 |
