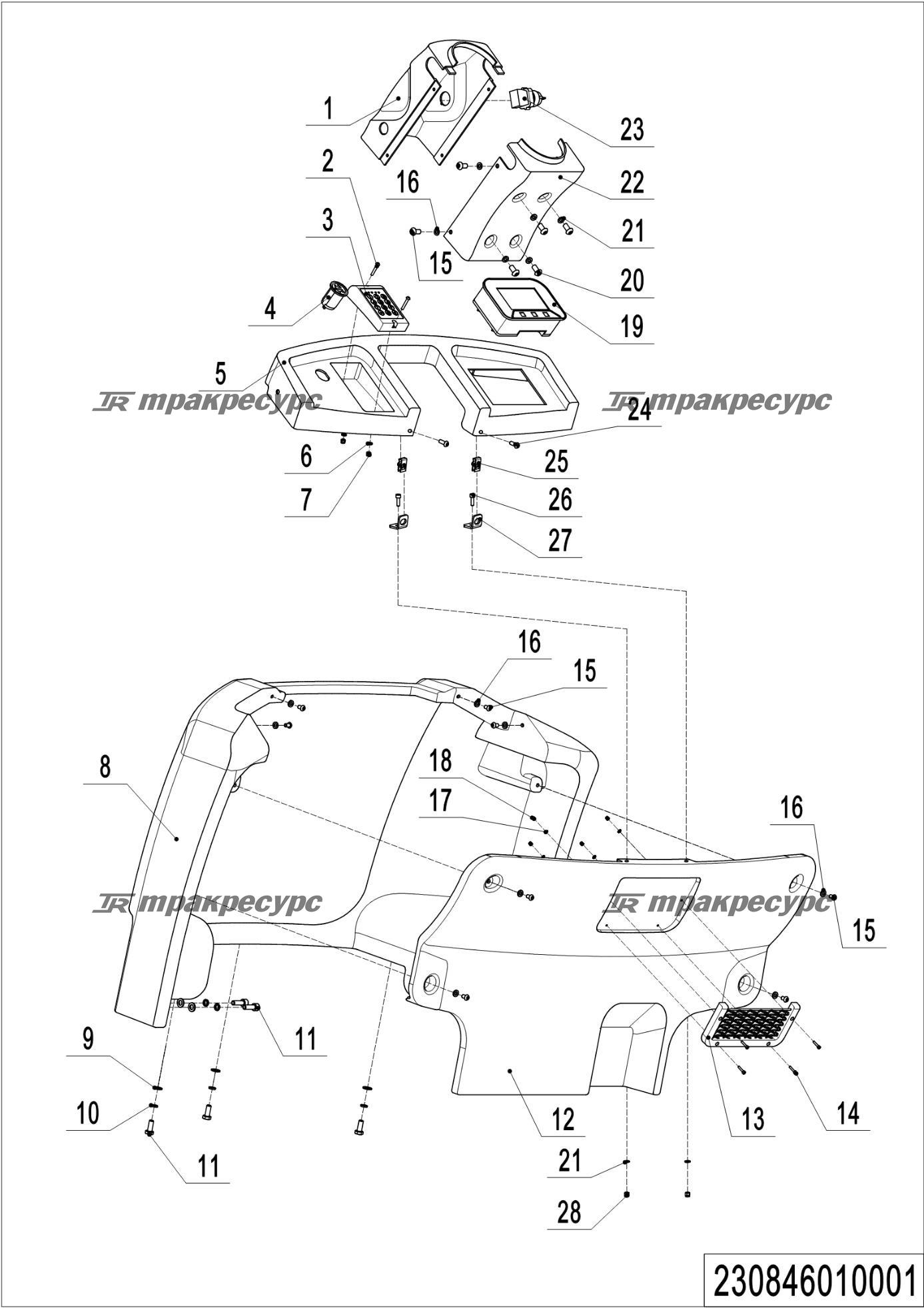

Noblelift T60Q Сборка панели управления 230846010001
| № | Наименование | Артикул |
|---|---|---|
| 1 | Cover | 231010020101 |
| 2 | Screw | 910200300009 |
| 3 | Pin-code Lock | 230833010009 |
| 4 | Converter | 921900100006 |
| 5 | Protective Cover | 230810020001 |
| 6 | Flat Washer | 910400100003 |
| 7 | Nut | 910300500001 |
| 8 | Protective Cover | 230810020100 |
| 9 | Flat Washer | 910400100006 |
| 10 | Spring Washer | 910400500006 |
| 11 | Bolt | 910100300022 |
| 12 | Protective Cover | 230810020002 |
| 13 | String Bag | 230810010000 |
| 14 | Screw | 910200200004 |
| 15 | Screw | 910200300016 |
| 16 | Flat Washer | 910400100005 |
| 17 | Flat Washer | 910400100002 |
| 18 | Nut | 910300500011 |
| 19 | Display | 921100100100 |
| 19 | Display | 921100100063 |
| 20 | Screw | 910200300013 |
| 21 | Flat Washer | 910400100004 |
| 22 | Cover | 231010020100 |
| 23 | Key Switch | 920200200025 |
| 23 | Key Switch | 920200200028 |
| 24 | Screw | 910200300018 |
| 25 | Cage Nut | 940400400001 |
| 26 | Screw | 910200200023 |
| 27 | Mounting Rack | 230810020003 |
| 28 | Nut | 910300500002 |
